Raspberry pi serial rs232 console

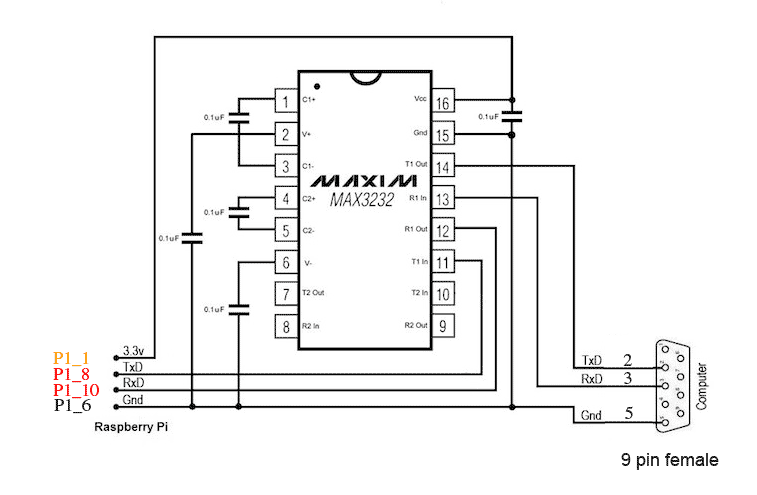

Schematic to connect the Raspberry Pi GPIO serial port to a pc with rs232 interface.

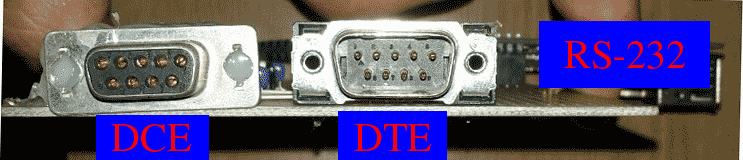

The schema use a DCE configuration, with female connector, if you want a DTE you can use a male connector and exchange pin 2 and 3.

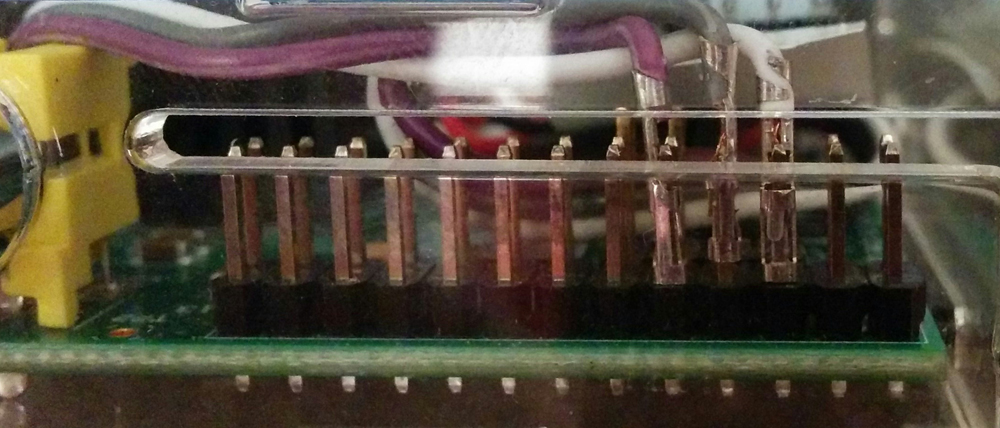

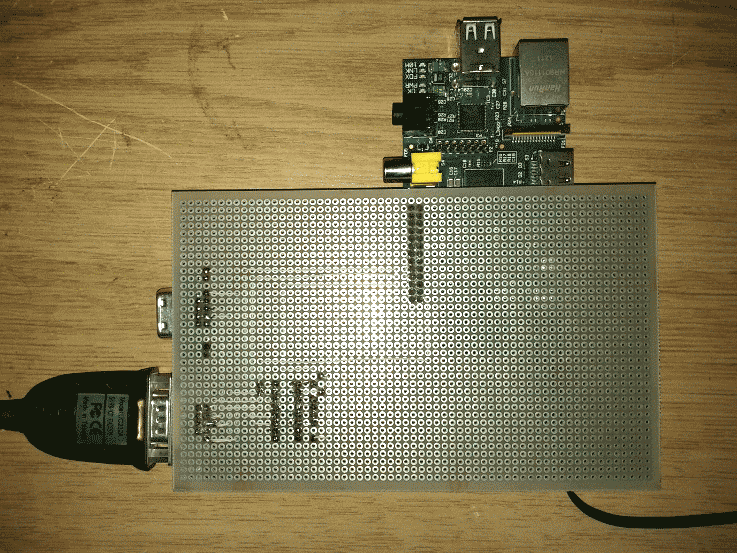

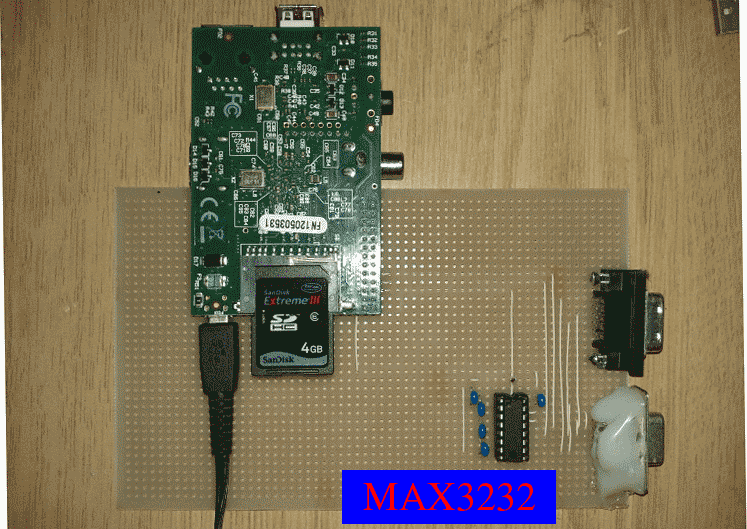

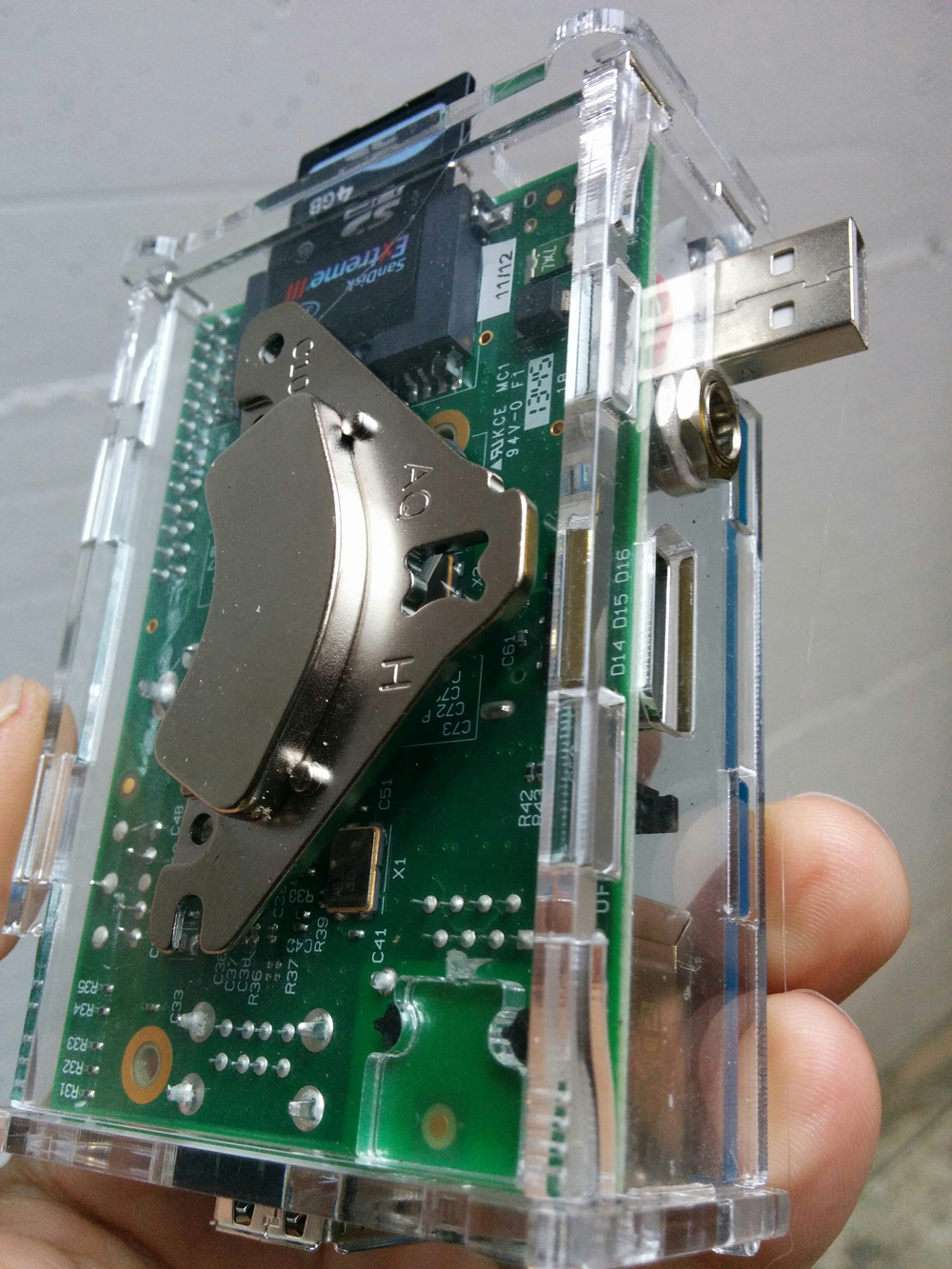

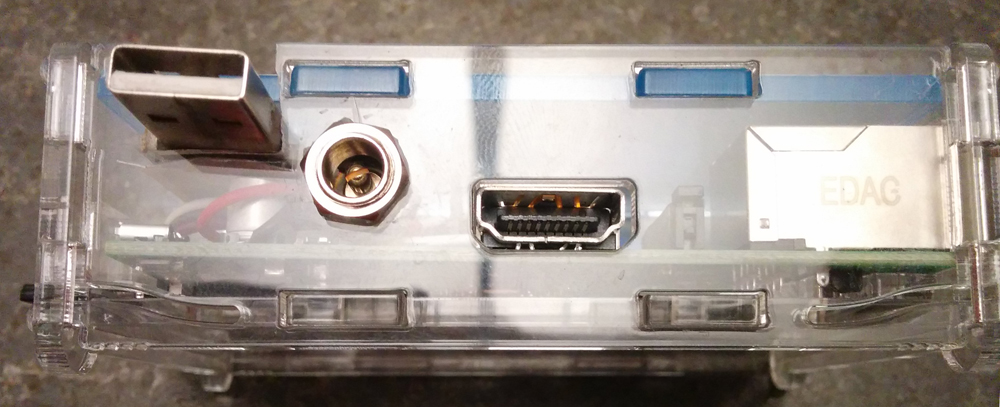

The photos showes both installed connector but you can use only one at time, not both.

---

---

---

---

Webography:
http://codeandlife.com/2012/07/01/raspberry-pi-serial-console-with-max3232cpe/

---

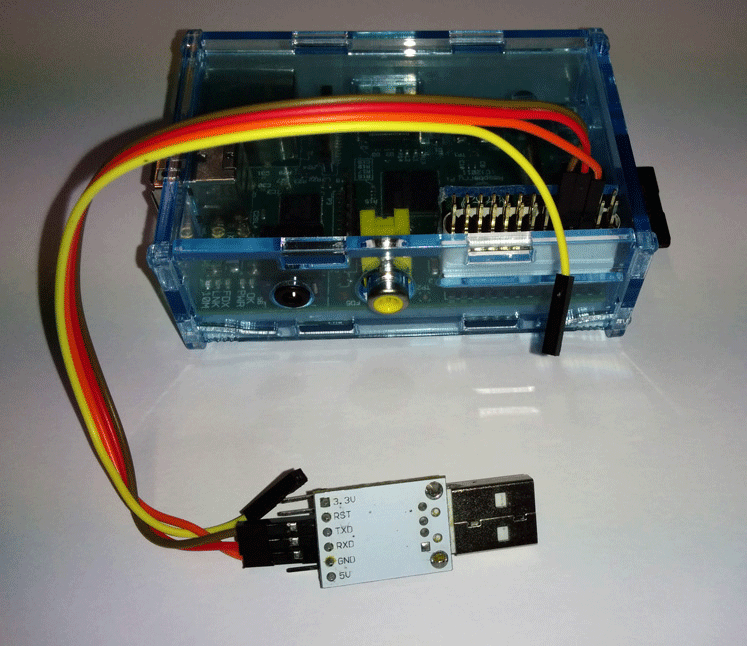

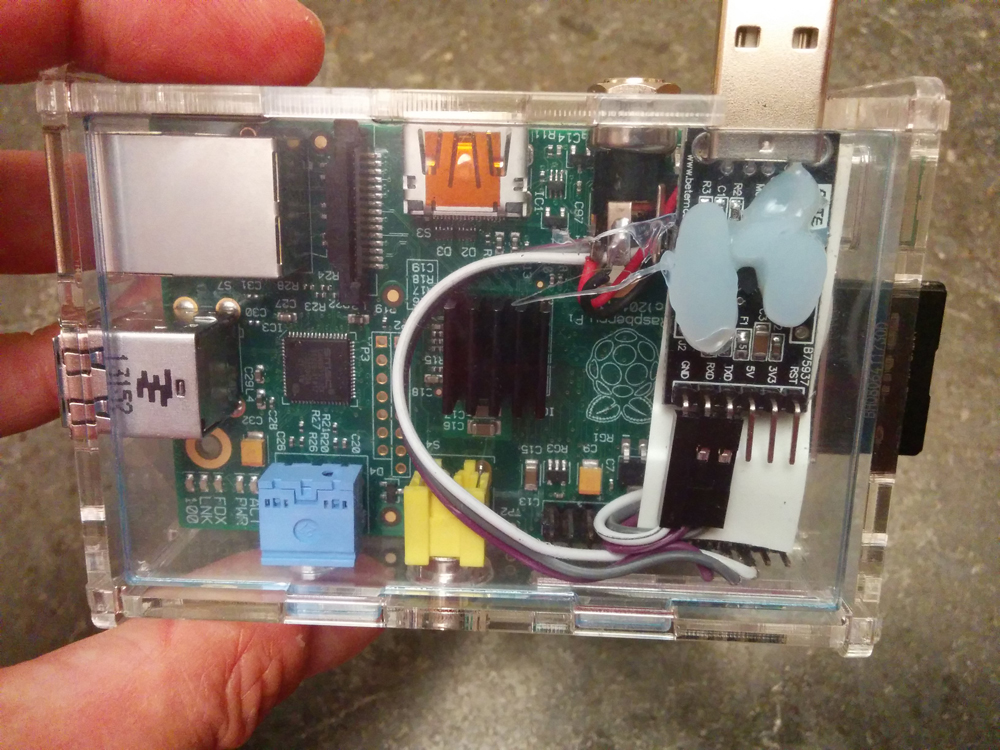

Raspberry pi serial usb console

5V power supply

Raspberry	Usb serial adapter
P1_6	GND
P1_8	RXD
P1_10	TXD

Use an external power supply, do not use the power of usb serial converter, it does not provide enough current!
